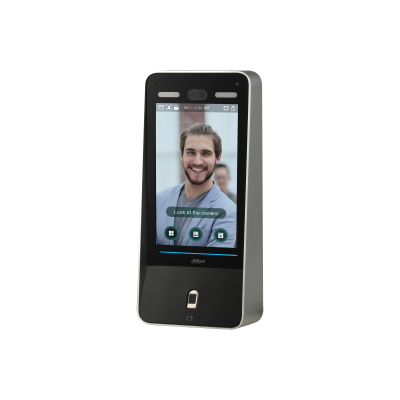

ASI8214Y-V3

Face Recognition Access Controller

> Aluminium alloy housing with wire-drawing treatment; IP55; applicable to outdoor and indoor environment

> 10.1 inch LCD touch screen; resolution 1280×800

> With 2 MP wide-angle dual lens, white fill light, IR light, and WDR

> Support face, card, password, and fingerprint unlock; unlock by period

> User data can be stored at the access controller; can hold 100, 000 face images and work without network

> Face-camera distance: 0.3m-2.0m

> Face verification accuracy ≥99.5%; face comparison speed ≤0.2s per person; low false recognition rate Support liveness detection



  • Спецификации
  • Аксессуары
  • Загрузить
  • System

    Main Processor

    Embedded Processor

    Network Protocol

    IPv4, RTSP, RTP, TCP, UDP, P2P

    OSDP Protocol

    Support

    Interoperability

    CGI

    SDK

    Support

    Basic

    Display

    10.1 inch TFT screen

    Screen Type

    Capacitive touch screen

    Screen Resolution

    1280x800

    Camera

    2MP CMOS

    WDR

    120dB

    Light Compensation

    Auto whitelight fill light
    Auto IR fill light

    Status Indicator Light

    1 indicator lights. Red: Recognition failed; Green: Recognition succeeded; Blue: Standby mode

    Voice Prompt

    Support

    Housing Material

    PC+ABS; Aluminum alloy frame

    Function

    Unlock Mode

    Card/Password/Fingerprint/Face unlock

    Card, password, fingerprint, and face combination unlock

    Card Reader Type

    IC card

    Period List

    128

    Holiday Period

    128

    First-card Unlock

    Support

    Remote Verification

    Support

    Peripheral Card Reader

    1 RS-485 and 1 Wiegand

    Multi-card Unlock

    Support

    Real-time Surveillance

    Support

    Web Configuration

    Support

    Card Reading Distance

    1 cm–4 cm

    Face Recognition Range

    Face-camera distance: 0.3 m–2.0 m Human height:0.9 m–2.4 m

    Face Verification Accuracy

    ≥99.5%

    Face Recognition Speed

    0.2s

    Fingerprint Sensor Type

    Capacitance

    Fingerprint Verification Mode

    1:N

    Fingerprint Comparison Time

    ≤1.5S

    Capacity

    User Amount

    100, 000

    Face Amount

    100, 000

    Fingerprint Amount

    10, 000

    Card Amount

    100, 000

    Password Amount

    100, 000

    Storage Record Amount

    100, 000

    Port

    RS-485

    1

    RS-232

    1

    Wiegand

    1 (26, 34, 66)

    USB

    1 USB2.0 port

    Network

    1 100M Ethernet port

    Alarm Input

    2

    Alarm Output

    2

    Alarm Linkage

    Support

    Unlock Button

    1

    Door Status Detection

    1

    Door Lock Control

    1

    Alarm

    Anti-passback

    Support

    Tamper

    Support

    Duress

    Support

    Door Sensor Timeout

    Support

    Illegal Intrusion

    Support

    Illegal Card Exceeding Threshold Alarm

    Support

    Duress Fingerprint

    Support

    General

    Power Supply

    DC 12V 2A

    Ingress Protection

    IP55

    Power Consumption

    ≤24W

    Dimensions

    396.9mm×185.6mm×77.2mm

    Operating Temperature

    -30°C to +50°C

    Operating Humidity

    5%RH–95%RH

    Working Environment

    Indoor and outdoor

    Gross Weight

    4.32 kg

    Installation

    Wall mount

    Certifications

    CE/FCC
