HAC-HDW1801T-IL-A new-products

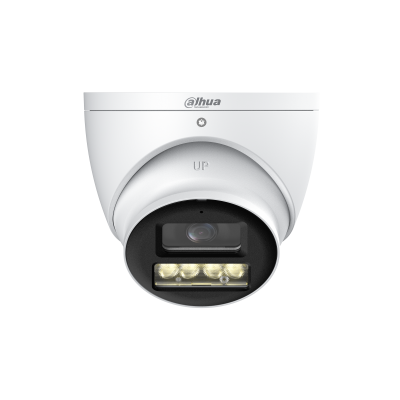

4K Smart Dual Light HDCVI Fixed-focal Eyeball Camera

> * The parameters and datasheets below can only be applied to 1801-IL-S3 series.

> * In order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.

> Max. 15 fps@4K.

> Smart Dual Light.

> 40 m illumination distance.

> Super Adapt.

> Built-in Mic.

> 3.6 mm fixed lens (2.8 mm optional).

> CVI/CVBS/AHD/TVI switchable.

> IP67, 12 VDC.

  • Specifications
  • Accessories
  • Download
  • selector-pcimg

    Product Selector

    Camera

    Image Sensor

    4K CMOS

    Max. Resolution

    3840 (H) × 2160 (V)

    Scanning System

    Progressive

    Electronic Shutter Speed

    PAL: 1/25 s–1/100,000 s
    NTSC: 1/30 s–1/100,000 s

    Min. Illumination

    0.01 lux@F2.0 (Color, 30 IRE)
    0.001 lux@F2.0 (B/W, 30 IRE)
    0 lux (Illuminator on)

    S/N Ratio

    >65 dB

    Illumination Distance

    IR: 40 m (131.23 ft); Warm Light: 40 m (131.23 ft)

    Illuminator On/Off Control

    Auto/Manual

    Illuminator Number

    4 (Multi-core light)

    Angle Adjustment

    Pan: 0°–360°
    Tilt: 0°–78°
    Rotation: 0°–360°

    Lens

    Lens Type

    Fixed-focal

    Lens Mount

    M12

    Focal Length

    2.8 mm; 3.6 mm

    Max. Aperture

    F2.0

    Field of View

    2.8 mm: H: 105.5°; V: 56.5°; D: 125.3°
    3.6 mm: H: 86.8°; V: 44.6°; D: 104.5°

    Iris Control

    Fixed

    Close Focus Distance

    2.8 mm: 1.3 m (4.27 ft)
    3.6 mm: 2.1 m (6.89 ft)

    DORI Distance

    Lens Detect Observe Recognize Identify
    2.8 mm 88.0 m
    ( 288.71 ft)     		35.2 m
    ( 115.49 ft)     		17.6 m
    ( 57.74 ft)     		8.8 m

    ( 28.87 ft)
    3.6 mm 113.6 m
    ( 372.70 ft)     		45.4 m
    ( 148.95 ft)     		22.7 m
    ( 74.48 ft)     		11.4 m

    ( 37.40 ft)
    *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

    Video

    Video Frame Rate

    CVI:
    PAL: 4K@15 fps;
    NTSC: 4K@15 fps;
    AHD:
    PAL: 4K@15 fps;
    NTSC: 4K@15 fps;
    TVI:
    PAL: 4K@15 fps;
    NTSC: 4K@15 fps;
    CVBS:
    PAL: 960H
    NTSC: 960H

    Resolution

    4K (3840 × 2160); 960H (960 × 576/960 × 480)

    Day/Night

    Auto(ICR)/Color/B/W

    BLC

    BLC; HLC; WDR

    WDR

    WDR

    White Balance

    Auto

    Gain Control

    Auto

    Noise Reduction

    3D NR

    Illumination Mode

    Smart IR&WL(CVI,TVI); WL Mode; IR Mode

    Mirror

    Yes

    Certification

    Certifications

    CE-LVD: EN 62368-1;
    CE-EMC: EN 55032; EN 55035;

    Audio

    Built-in Mic

    Yes

    Camera Audio

    CVI

    Pick-up Distance

    8 m (26.25 ft)

    Port

    Video Output

    Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

    Power

    Power Supply

    12 VDC (±30%)

    Power Consumption

    Max 7.2 W (12 VDC, IR on)

    Environment

    Operating Temperature

    –40 °C to +60 °C (–40 °F to +140 °F)

    Operating Humidity

    <95% (RH), non-condensing

    Storage Temperature

    –40 °C to +60 °C (–40 °F to +140 °F)

    Storage Humidity

    <95% (RH), non-condensing

    Protection

    IP67

    Anti-corrosion Level

    Basic Protection

    Structure

    Casing Material

    Metal

    Product Dimensions

    Φ106.0 mm × 96.9 mm (Φ4.17" × 3.81")

    Net Weight

    0.48 kg (1.06 lb)

    Gross Weight

    0.62 kg (1.37 lb)

    Installation

    Wall mount; ceiling mount; vertical pole mount
