ASR1200E-D

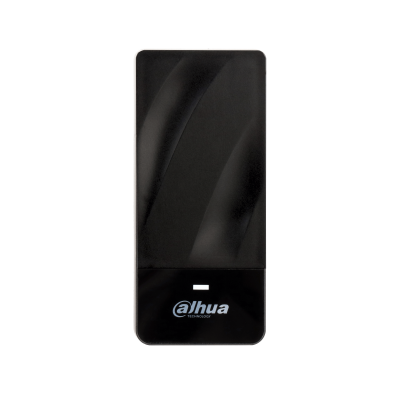

Dahua ID Card Water proof Access Reader

> Made from ABS materials.

> Contactless card reading for ID card.

> Communicates through RS-485 and Wiegand34 protocols.

> Buzzer and indicator light.

> Offers overcurrent and overvoltage protection.

> Protects against lightning and short circuits, and is antistatic.

> Watchdog monitors and controls the device when it behaves abnormally, performing recoveries when necessary to ensure the long- term operation of the device.

> IP66 rated.

> Suitable for use both indoors and outdoors.

> Supports surface mount.

  • Specifications
  • Accessories
  • Download
  • selector-pcimg

    Product Selector

    System

    OSDP Protocol

    Yes

    Basic

    Product Type

    Card reader

    Buzzer

    Yes

    Casing Material

    ABS

    Function

    Unlock Mode

    Supports card swiping

    Card Type

    ID card

    Modulation Type

    AM

    Frequency Range

    125 kHz

    Max Transmission Power

    66 dBuA/m @10 m

    Performance

    Response Time

    0.1 sec

    Card Reading Distance

    0 cm–3 cm (0"–1.18")

    Port

    RS-485

    1

    Wiegand

    1

    General

    Power Supply

    12 VDC, 0.5 A

    Protection

    IP66 rated

    Power Consumption

    0.6 W

    Product Dimensions

    97.0 mm × 44.0 mm × 17.0 mm (3.82" × 1.73" × 0.67")

    Packaging Dimensions

    122.0 mm × 92.5 mm × 58.0 mm (4.80" × 3.64" × 2.28")

    Operating Temperature

    –30 °C to +65 °C (–22 °F to +149 °F)

    Operating Humidity

    5%–95% (RH), non-condensing

    Operating Environment

    Outdoor

    Gross Weight

    0.11 kg (0.25 lb)

    Installation

    Surface Mount

    Certifications

    CE; FCC
